Intorq Brakes and Clutches

NPSDAPL Intorq Brakes and Clutches

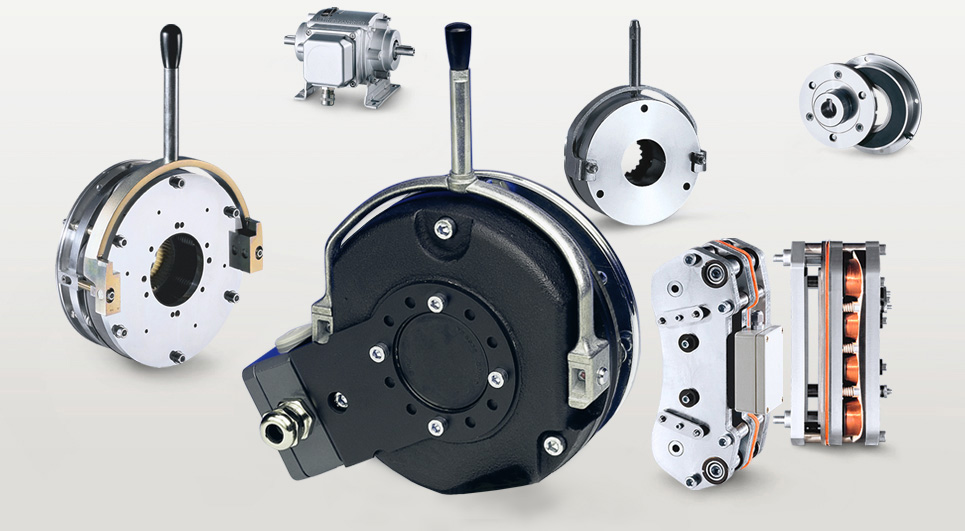

 Intorq Brakes And Clutches

Are you increasingly facing global challenges? We can offer you the right solutions with our tailor-made INTORQ range:

  • Brakes and clutches for the sectors of electrical drive technology

  • High-performance, configurable standard products with a wide operational scope

  • Customised solutions for demanding applications in terms of technology and cost

  • Consulting and delivery through a worldwide sales network

  • Global purchasing of components and sub-assemblies

  • Fast and binding delivery times

Spring-applied brakes

The versatile modular system INTORQ BFK458

Our modular system forms the basis of a product programme that can be adapted to suit practically any application. The BFK458 spring-applied brake is a standard product that can be used anywhere, but its modular design means it can also be used for special applications. Its versatility is its strength.

Features:

  • Braking torque: 1,5-600 Nm

  • 9 sizes in CSA-CUS design

  • DC voltages: 24, 103, 180, 205 V

  • Thermal class F (155 °C)

  • Preset air gap

  • Braking torque can be reduced (module E)

  • Long rotor/hub guide with low rate of wear

  • Manual release facilities for all sizes

  • Air gap and wear monitoring (optional)

Application areas:

Brake motors, cranes, warehousing, wood working machines, industrial trucks, stage machinery, vehicles for the disabled and escalators.

Electromagnetic clutches and brakes

INTORQ 14.105 and 14.115

In machines that have a centralised drive, electromagnetic clutches and brakes control the speeds of lower-level drive assemblies. INTORQ products are characterised by short operating times, low motor moment of inertia and torque transfer with no torsional backlash.

Features:

  • Clutch and braking torques from 7.5-480 Nm

  • 7 sizes

  • DC voltage: 24 V

  • Thermal class B (130 °C)

  • Torque transfer with no torsional backlash

  • Wide range of applications thanks to the various types of magnet and armature element

  • Short operating times and low motor moment of inertia mean high switching frequencies

Application areas:

Packaging machines, mechanical and apparatus engineering, gates, folding and printing machinery.
